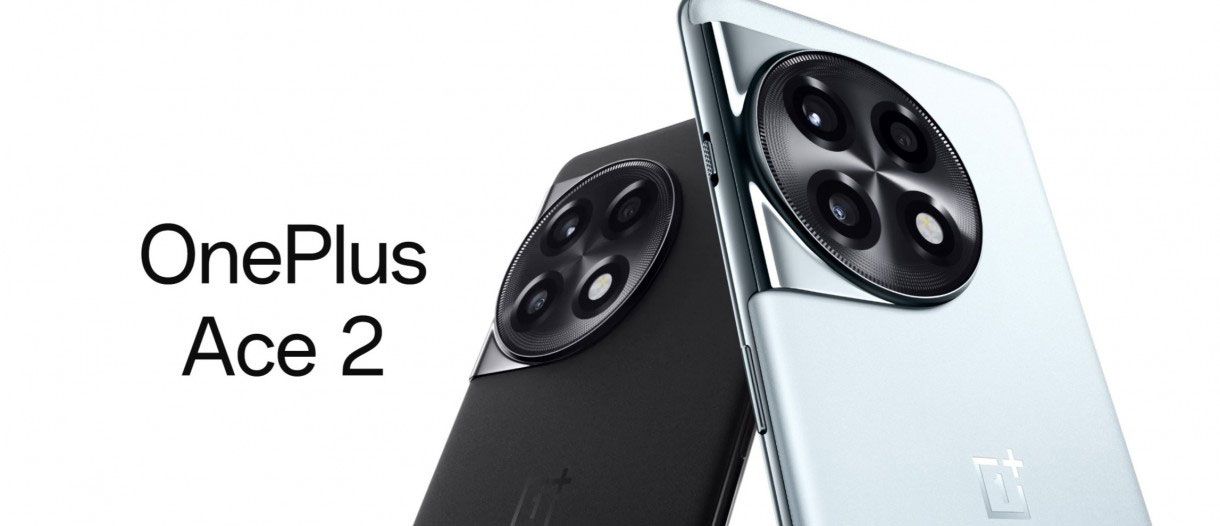

OnePlus Ace 2 5G

Unleash powerful performance with the OnePlus Ace 2, featuring a 6.74" display, 50MP camera, Snapdragon 8+ Gen 1 processor, 5000mAh battery and lightning-fast 100W charging for a premium mobile experience.

OnePlus Ace 2 5G – Complete Specifications & Features

1. Design & Build

Dimensions: 163.4 x 74.3 x 8.7 mm | Weight: 204g
Materials:
- Gorilla Glass 5 (front) + 3D curved matte glass back
- Plastic frame (cost-saving measure)
IP Rating: None (no official dust/water resistance)
Colors:

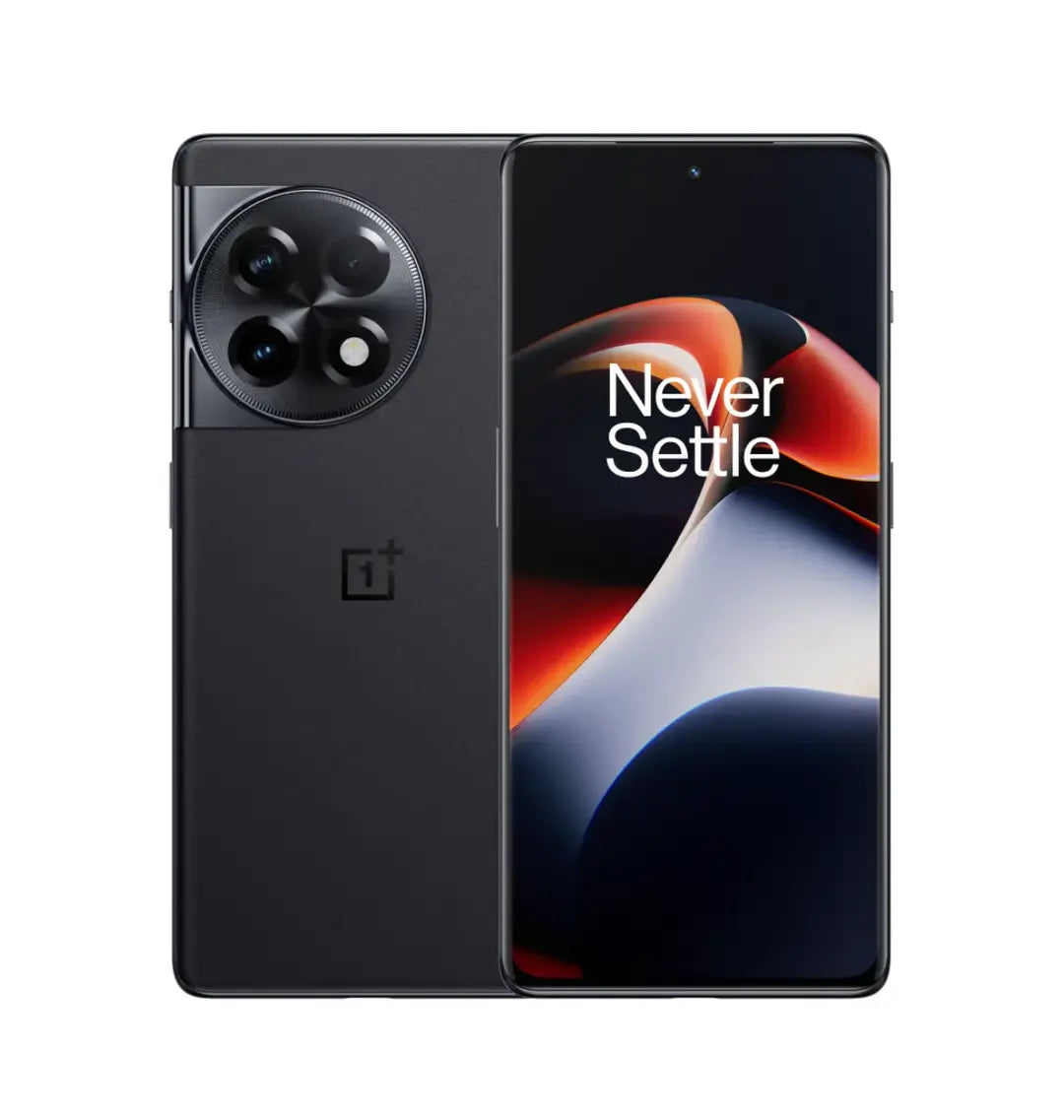

- Vast Black (matte sandstone texture)

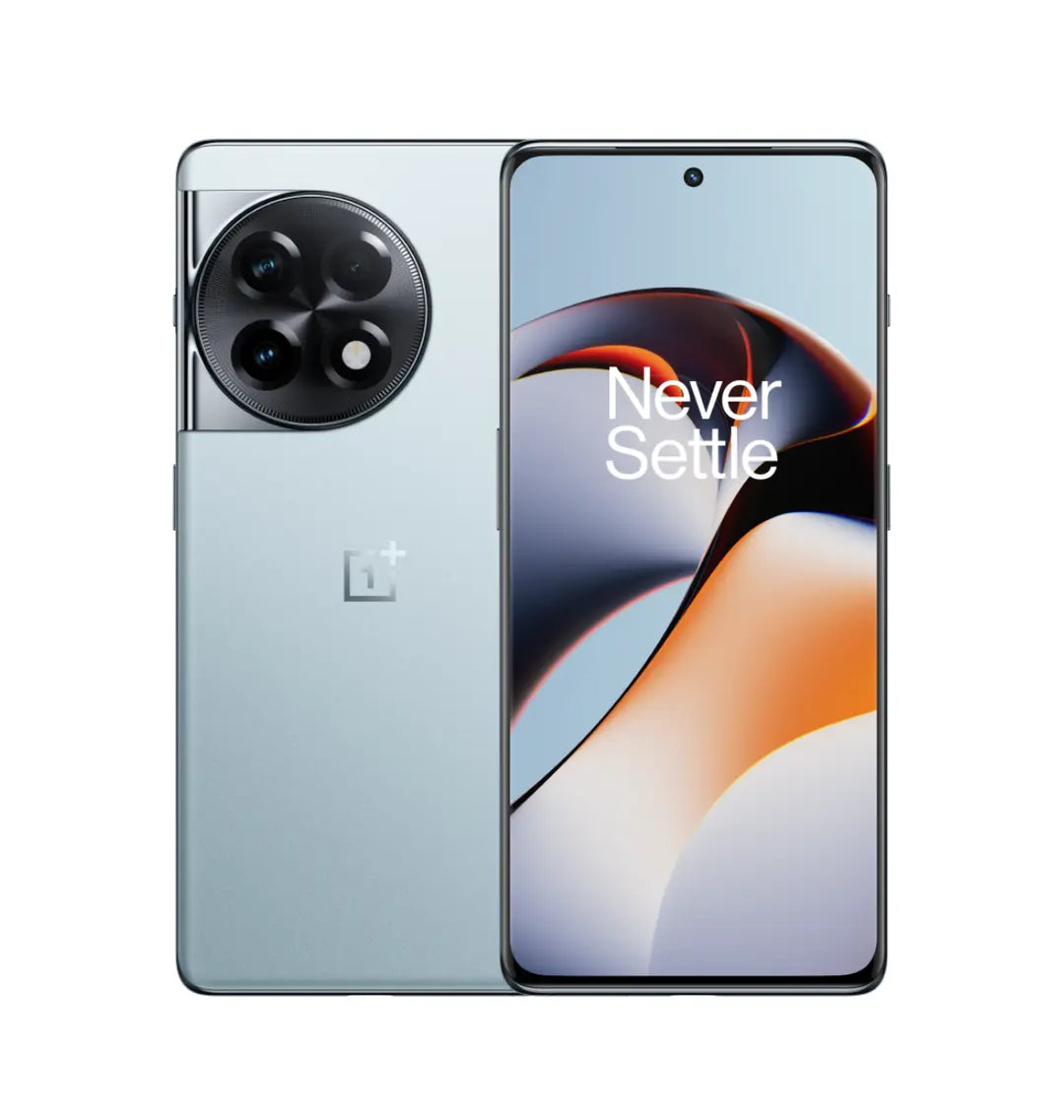

- Glacier Blue (glossy finish)
Signature Features:
- Alert Slider (physical mute switch)
- In-display fingerprint sensor

2. Display

Type: 6.74-inch 1.5K AMOLED
Resolution: 2772 × 1240 pixels (~450 PPI)
Refresh Rate: 120Hz adaptive (1Hz-120Hz LTPO 3.0)
Brightness:
- 1100 nits (peak HDR) | 500 nits (typical)
Features:
- HDR10+, 10-bit color
- 1440Hz PWM dimming (reduced eye strain)
- 100% DCI-P3 coverage

3. Performance

Chipset: Qualcomm Snapdragon 8+ Gen 1 (4nm, Octa-core)
- CPU: 1x Cortex-X2 (3.2GHz) + 3x Cortex-A710 (2.8GHz) + 4x Cortex-A510 (2.0GHz)
- GPU: Adreno 730 (Vulkan 1.1, Ray Tracing support)
RAM & Storage:
- 12GB/16GB LPDDR5X RAM
- 256GB/512GB UFS 3.1 storage (no microSD slot)
Cooling: HyperBoost Gaming Engine + 5177mm² VC cooling

4. Camera System

Triple Rear Setup:
1. 50MP Sony IMX890 (Primary)
  - f/1.8 aperture | OIS | 1/1.56" sensor
  - Supports 4K@60fps video
2. 8MP Sony IMX355 (Ultra-wide)
  - 120° FOV | f/2.2
3. 2MP Macro (f/2.4)
Front Camera: 16MP (f/2.4)
Video Features:
- Nightscape Video | Portrait Mode | Pro Mode

5. Battery & Charging

Capacity: 5000mAh (dual-cell)
Wired Charging: 100W SUPERVOOC (1-100% in 25 mins)
Wireless Charging: Not supported
Battery Life:
- 7–8 hours SOT (heavy use)
- 1.5 days (moderate use)

6. Software & UI

OS: ColorOS 13 (China) / OxygenOS 13 (Global as 11R)
Android Version: Android 13 (upgradable to Android 14)
Update Policy: 3 OS updates + 4 years security patches

7. Connectivity

5G: Dual-mode NSA/SA
Wi-Fi 6 | Bluetooth 5.3 | NFC
USB Type-C 2.0 (no video output)

8. Audio & Extras

Stereo speakers (Dolby Atmos)
No 3.5mm headphone jack
X-axis linear motor (precise haptics)

Key Selling Points

✅ Flagship-tier Snapdragon 8+ Gen 1 performance
✅ 1.5K 120Hz AMOLED display (LTPO for efficiency)
✅ 100W fast charging (full charge in 25 mins)
✅ Premium design (glass back, curved display)

Limitations

❌ No IP rating (not water-resistant)
❌ No wireless charging
❌ Ultra-wide camera is mediocre (8MP)

Global Variant: OnePlus 11R 5G

The Ace 2 was rebranded as the OnePlus 11R for global markets (e.g., India) with minor tweaks:

OxygenOS instead of ColorOS
Slightly different design

Final Verdict

The OnePlus Ace 2 5G is a performance beast for its price, offering:
✔ Near-flagship chipset
✔ Fast charging & great battery life
✔ Smooth 120Hz display
✔ Solid main camera (with OIS)

Ideal for gamers and power users who prioritize speed over premium extras like wireless charging.

Size: 163.4 x 74.3 x 8.7 mm (6.43 x 2.93 x 0.34 in)
Weight: 204 g (7.20 oz)
Build: Glass front (Asahi Glass), aluminum frame, glass back (Gorilla Glass 5)
SIM: Dual SIM (Nano-SIM, dual stand-by)
Colors: Black, Glacier Blue, Red
WLAN: Wi-Fi 802.11 a/b/g/n/ac/6, dual-band
Bluetooth: 5.3, A2DP, LE
Positioning: GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5)
NFC: Yes, eSE, HCE
Infrared port: Yes
Radio: No
USB: USB Type-C 2.0
Loudspeaker: Yes, with stereo speakers
3.5mm jack: No
Announced: 2023, February 07
Status: Available. Released 2023, February 13
Card slot: No
Internal: 256GB 12GB RAM, 256GB 16GB RAM, 512GB 16GB RAM, 512GB 18GB RAM; UFS 3.1
Type: Li-Po 5000 mAh, non-removable
Charging: 100W wired, 100% in 25 min (advertised)
Type: AMOLED, 1B colors, 120Hz, HDR10+
Size: 6.74 inches, 109.2 cm2 (~90.0% screen-to-body ratio)
Resolution: 1240 x 2772 pixels, 20:9 ratio (~451 ppi density)
Protection: Asahi Glass
Technology: GSM / CDMA / HSPA / LTE / 5G
Sensors: Fingerprint (under display, optical), accelerometer, gyro, proximity, compass, color spectrum
OS: Android 13, ColorOS 13
Chipset: Qualcomm SM8475 Snapdragon 8+ Gen 1 (4 nm)
CPU: Octa-core (1x3.19 GHz Cortex-X2 & 3x2.75 GHz Cortex-A710 & 4x1.80 GHz Cortex-A510)
GPU: Adreno 730
Main Camera: Triple, 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS; 8 MP, f/2.2, 16mm, 120˚ (ultrawide), 1/4.0", 1.12µm; 2 MP, f/2.4, (macro)
Features: LED flash, HDR, panorama
Video: 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS
Selfie camera: Single, 16 MP, f/2.4, 26mm (wide), 1/3.09", 1.0µm
Features: HDR Video 1080p@30fps
